Injector Waveform Presentation

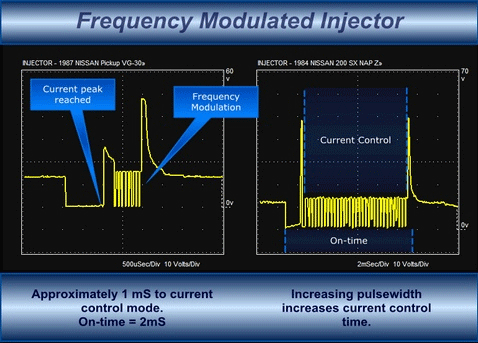

These are two different styles of peak and hold automotive fuel injectors waveforms.

  • The bottom captions are actually two different rectangular annotation. The FILL STYLES are set identical resulting in the long bar look.

  • Note the vertical cursors on the right waveform used to mark waveform. The blue background is actually a standard rectangular annotation without text and the transparency level set to approximately 30%.

.
